600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P - 20P

Name: 600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 3200mm 2P 20P
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR175-01-FaM0

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks

Pitch : 32.00mm

Number Of Contacts : 2P-20P

Wire Range : 3/0-20

Rated Voltage : 600V

Rated Current : 175A

Color : Black

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Contact Now

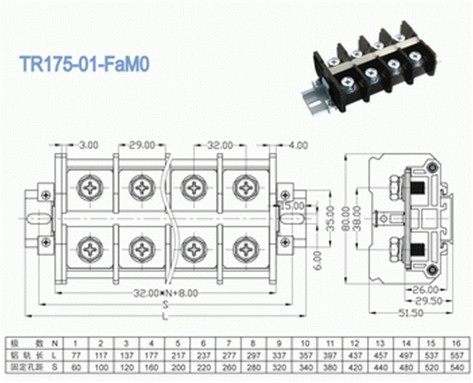

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 175	600 / 175
Wire Range AWG	3/0-20	3/0-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /175	1000 / 175	1000 / 175
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	80
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	14-18
Screw Torque mm	M8/31-40

Detailed product Description:

600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P-20P, any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P - 20P

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P - 20P

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
