Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors

Name: Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
Brand: SCED
Price: 1 USD

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors Manufactures

Brand Name : SCED

Model Number : TP381H-00F

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Pitch : 3.81mm

Poles : 2-20 poles

Material : PA66

Terminal : Brass material

Voltage : 300V

Current : 8A

Contact Now

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connector

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

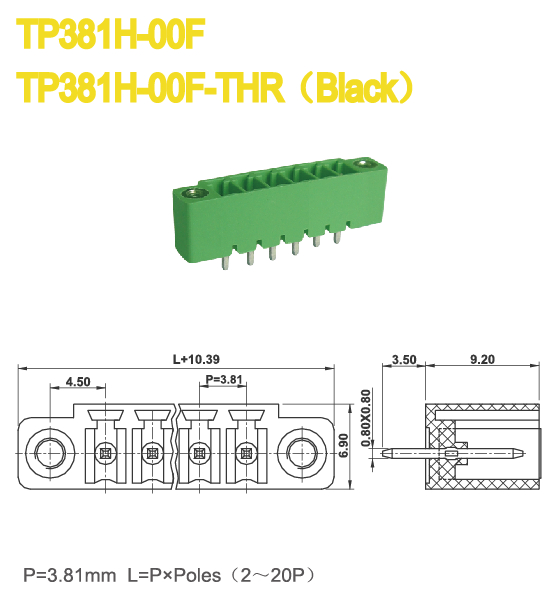

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Pin Dimension mm	0.8 x 0.8

How to order:

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Flange Mount Female Pluggable Terminal Block 300V 8A PA66 Brass Terminal Connectors
