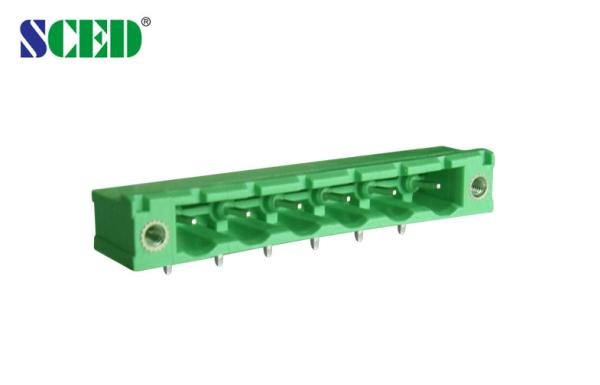

Male Pluggable Terminal Blocks 7.62mm Pitch 300V 18A UL94-V0

  • 1
  • 2

Brand Name : SCED

Model Number : TP508H-76VF

Certification : UL,CE

Place of Origin : Guangdong, China

MOQ : 1000 Piece/Pieces

Price : USD 0.038-0.76 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Pitch : 7.62mm

Type : Male parts

Current : 18A

Voltage : 300V

PCB Hole Diameter : 1.4mm

Terminal : Brass

Plating : Tin plated

Plastic : PA66

Inflammability Class : UL94-V0

Pole : 2-14 poles

Contact Now

Male Pluggable Terminal Blocks 7.62mm Pitch 300V 18A UL94-V0

Detailed product Description:

Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-14P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Level

This male header match with female plugs’ series: TP508P-76F, TP508P-77F, TP508P-78F, TP508P-79F

Standard color: Green. Other colors also can be available.

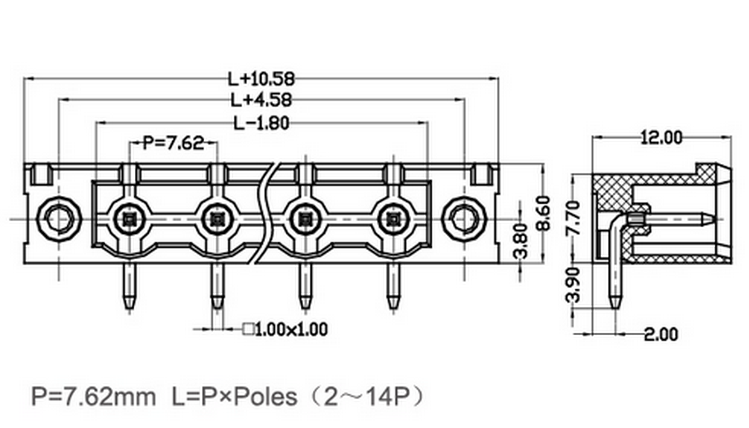

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/18
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0

Applications:

Our products can be used in below fields and industries:

1.Electric Lighting, Industry Control, Automation, Rail Transportation

2.PCB, Frequency Converters, Server Site, Switch, Power Supply

3.Communication, Electric Power, Security, Medical Equipment and Military and so on.

Competitive Advantage:

  1. Flexible to design the exact part per customers’ demand
  2. High quality
  3. Competitive price
  4. Good after-sales service
  5. Quick response
  6. Lower and flexible MOQ
  7. more than 1000 models for selection
