300V 101A Feed Through Terminal Block M6 Screw Power Terminal Connector 16.00mm
1. Quick Detail:
The current : 101A Voltage: 600V Insulation Material: PBT Inflammability Classl: UL94, V-0
2. Description:
It can realize a variety of ways to entered more into the line of, such as into line, up and down into
the line before and after, a into a, You can configure the article identifies the short, protective cover plate, sheet in the attachment.
3. Applications:
industrial control, power supply, energy conservation, etc.
4. Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 101 | | 300 / 10 |
| Wire Range AWG | 2-10 | | 2-10 |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 101 | 400 / 101 | 630 / 101 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 25 |
| Material | |
| Insulation Material / Inflammability Class | PBT / UL94, V-0 |
| Conduction Board / Plating | Copper / Nickel Plated |
| Screw / Plating | Steel / Nickel Plated |
| Other Data | |
| Stripping Length mm | 12-13 |
| Screw / Torque / lbf.in | M6 / 20-22 |
5. Feature Advantage:
Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc. It can be stackable to be different poles, easy to be mounted on PCB or control board, It has very good mechanical properties and electrical properties,
6. Competitive Advantage:
1. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;
3. Discount offered is based on qty.

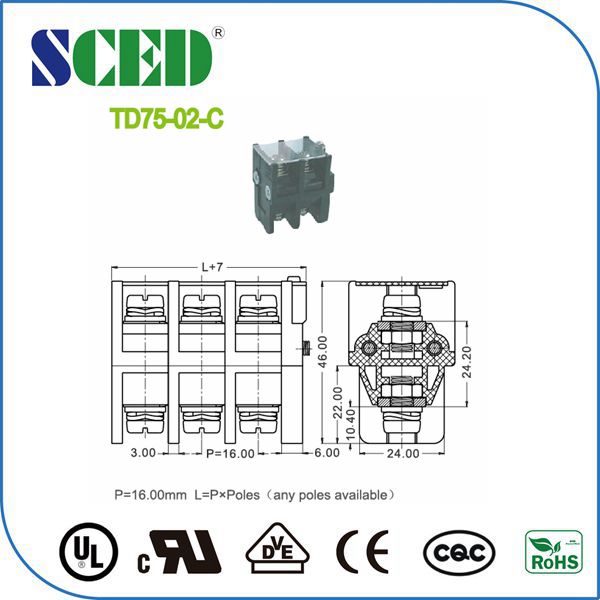

7. Drawing Photo
