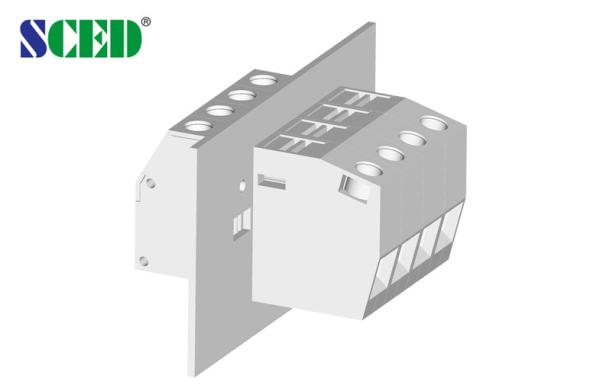

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

Name: White 1210mm Through Panel Terminal Blocks Connection Brass 600v 85A
Brand: SCED
Price: 0.45 USD

Brand Name : SCED

Model Number : TR-16N-02

Certification : CE,UL,CUL, CQC and VDE etc.

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.45-0.92 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Terminal Width : 12.1mm

Current : 85A

Voltage : 600V

Wire Range : 4-20 AWG

Plastic : PA66

Inflammability Class : UL94-V0

Screw : M5

Torque : 22-25 lbf.in

Stripping Length : 16mm

Wire Inlet : Right Angle

Contact Now

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

Detailed product Description:

Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available.

Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

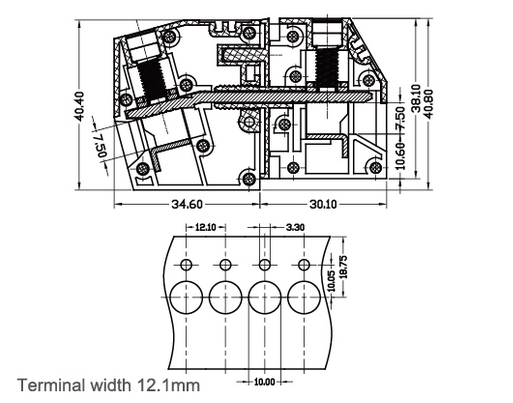

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 85		600 / 5
Wire Range AWG	4-20		4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 101	800 / 101	1000 / 101
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	16
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel / Nickel Plated
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	16
Screw / Torque / lbf.in	M5 / 22-25

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand.
