2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector

Name: 2 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector
Brand: SCED
Price: 1 USD

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector Manufactures

Brand Name : SCED

Model Number : TP254P-01

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500 pcs

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Type : Spring Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Pitch : 2.50mm

Number Of Contacts : 2P-24P

Wire Range : 28-20 AWG

Rated Voltage : 150V

Rated Current : 4A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector 150V 4A 2.50mm

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

How to order:
2 - 24 Number Of Contact Female Pluggable Terminal Blocks Spring Connector

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP254H-00 TP254H-00V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	150 / 4
Wire Range AWG	28-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 4	250 / 4	250 / 4
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	0.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Stainless steel
Contactor / Plating	Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

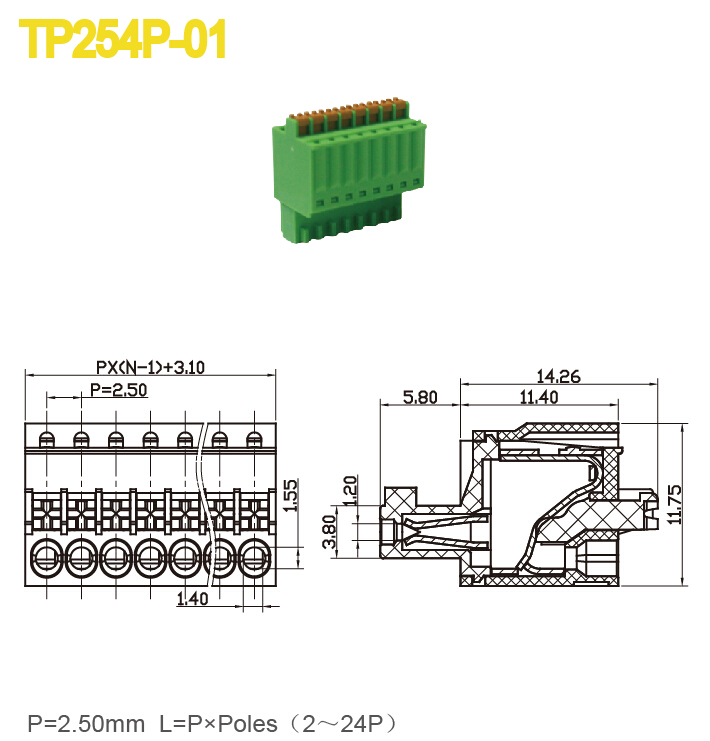

Drawing photo:
