20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

Name: 2000mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal
Brand: SCED
Price: 1 USD

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal Manufactures

Brand Name : SCED

Model Number : TR100-01-N5

Certification : UL, CE, CQC

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Pitch : 20.00mm

Poles : 4P

Voltage : 600V

Current : 100A

Housing Material : PC

Application : Power supply

Color : Black

Item : Feed through terminal connector, high current terminal, panel mount terminal block

Contact Now

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

Data spec.

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 100	600 / 100
Wire Range AWG	3-20	3-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /100	1000 / 100	1000 / 100
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	25
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	16-18
Screw Torque mm	M6 / 18-22

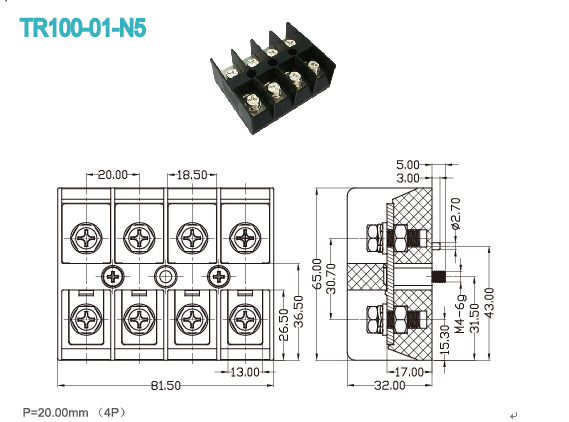

Drawing Specifications:

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

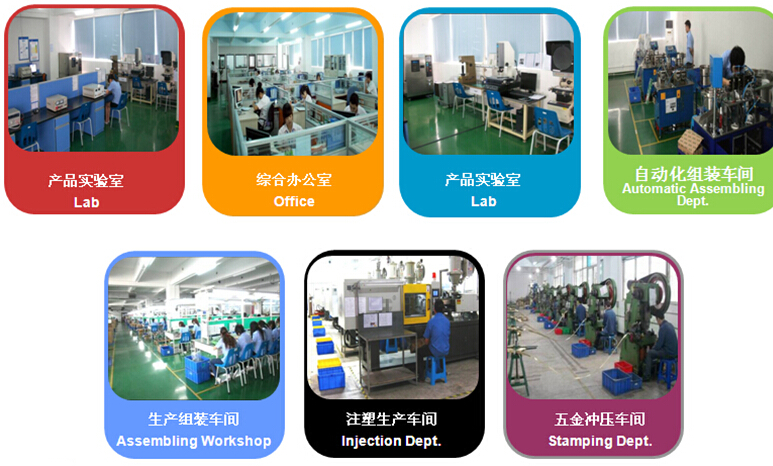

Factory Photo:

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal
