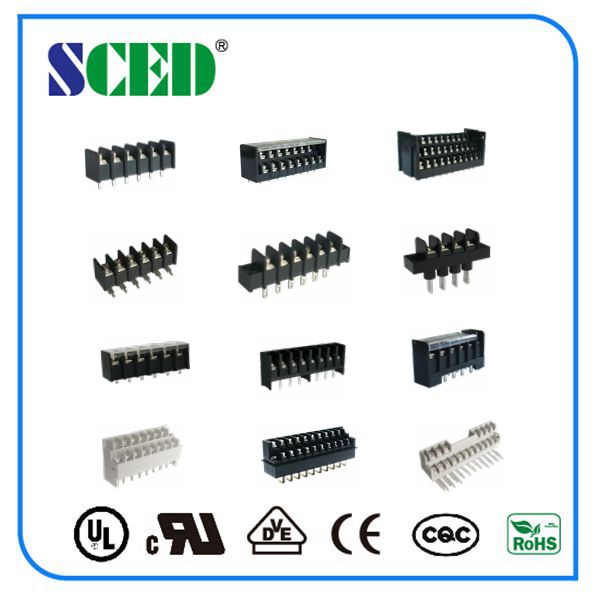

PCB Screw Connector Barrier Terminal Block 7.62mm 9.52mm For Inverter Power
Quick Details:
1. PCB barrier Terninal Blocks is widely used in automation, frequency conversion, communication, power supply and etc.
2. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
3. With or without cover, one or two rows, from one level to three levels, etc.
4. Materials: Plastic housing is PBT(UL94 V-0) Operating temperature: -40~+120 Clamp cage and terminal is high quality brass or copper screw is high-quality steel

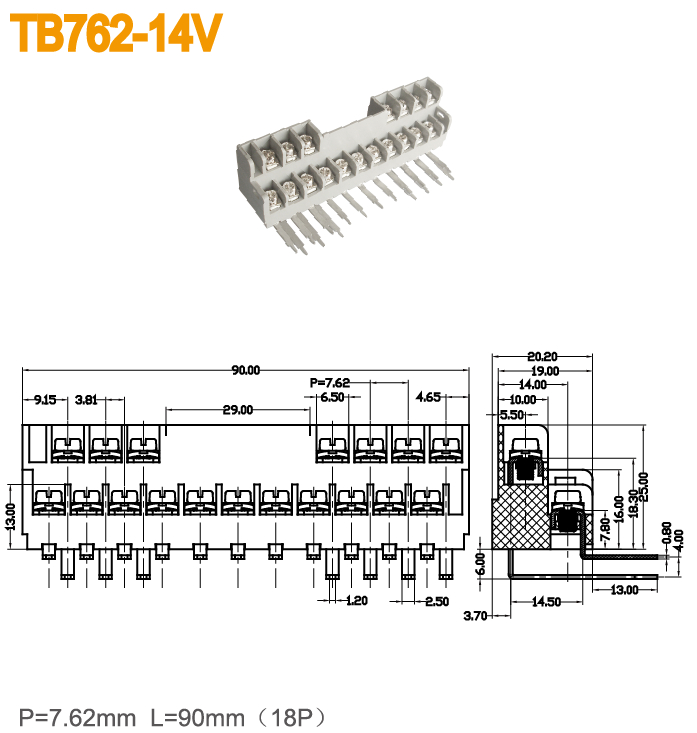

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 15 | | 300 / 10 |
| Wire Range AWG | 14-24 | | 14-24 |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 24 | 320 / 24 | 400 / 24 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 |
| Material | |
| Insulation Material / Inflammability Class | PBT / UL94, V-0 |
| Terminal / Plating | Brass /Tin Plated |
| Screw / Plating | Steel / Nickel plated |
| Other Data | |
| PCB Hole Diameter mm | φ1.7 |
| Stripping Length mm | 7-8 |
| Screw / Torque / lbf.in | M 3 / 5-7 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
