10A 2P-28P Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v

  • 1
  • 2

Brand Name : SCED

Model Number : TJ381-01

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Piece/Pieces

Price : USD 0.054-0.108 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Level : Double levels

Pitch : 3.81mm

Color : Green

Current : 10A

Voltage : 300V

Screw : Steel

Plastic : PA66

Contact Resistance : Less than 8mΩ

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Contact Now

Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P

Detailed product Description:

Pitch 3.81mm, 300V 10A, 2P-28P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■ Right angle wire inlet

■ Double decks

Standard color: Green.

Other colors also available.

Applications:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply

2. Electric Lighting, Industry Control, Automation, Rail Transportation

3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

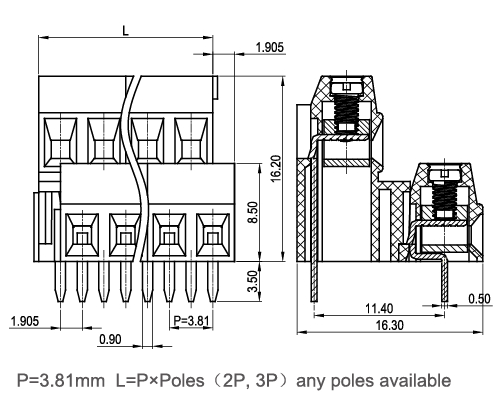

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 10

Wire Range AWG

16-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.0

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ1.3

Stripping Length mm

4-5

Screw / Torque / lbf.in

M2 / 1.8-2.0

Competitive Advantage:

1. 10 main series and more than 1000 models for selection

2. Stable good quality

3. Flexible to design the exact part per customers' demand

4. Resonable price

5. Good servide.
