Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series

  • 1
  • 2

Brand Name : SCED

Model Number : TJ508-06

Certification : UL,CE,CUL,CQC and VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Piece/Pieces

Price : USD 0.04-0.09 per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 working days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm

Pitch : 6.35mm

Inflammability Class : UL94-V0

Insulation Material : PA66

Metal Part : Brass

Voltage : 300V

Current : 30A

Color : Green

Poles : 2-24 poles

Wire inlet : Right angle

Rated Surge Voltage : No abnormal within 1 minute

Contact Now

Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series

Detailed product Description:

Pitch 6.35mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.

Applications:

They can be used in a lot of industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

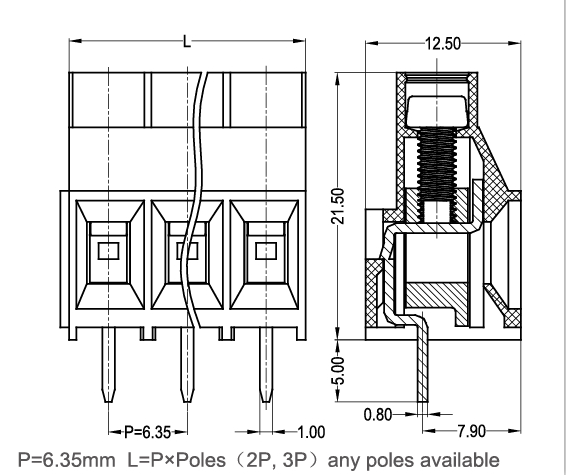

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 10 300 / 10
Wire Range AWG 12-26 12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 32 320 / 32 630 / 32
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.5
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. OEM and OMD servicePluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
