600V 65A Pitch 10.1mm Feed Through Terminal Block Connector , Single Deck 2P-24P

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-10N-06

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 100K poles each monthly

Type : Terminal Block Connector,Terminal Block Connectors, PCB Connectors

Pitch : 10.1mm

Number Of Contacts : 2P-24P

Wire Range : 6-24

Rated Voltage : 600V

Rated Current : 65A

Color : Grey

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now


Detailed product Description:

600V 65A Pitch 10.1mm Feed Through Terminal Block Connector, Single Deck 2P-24P, Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks, terminal block connectors

How to order:


600V 65A Pitch 10.1mm Feed Through Terminal Block Connector , Single Deck 2P-24P
Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

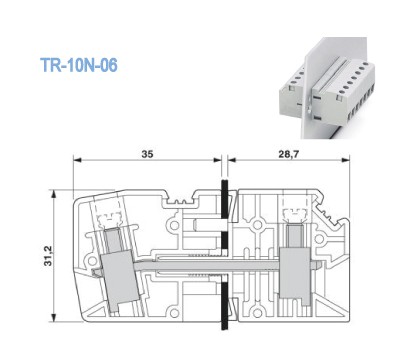

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 65

600 / 5

Wire Range AWG

6-24

6-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

10

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

11

Screw / Torque / lbf.in

M4 / 10.6-13



600V 65A Pitch 10.1mm Feed Through Terminal Block Connector , Single Deck 2P-24P


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
