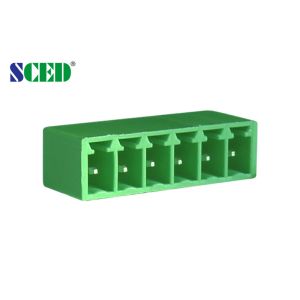

Pitch 3.81mm pin header PCB Pluggable Terminal Block

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381H-00V

MOQ : 2000

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Wire Inlet : Right angle wire inlet

Type : Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors

Pitch : 3.81mm

Number Of Contacts : 2P-22P

Rated Voltage : 300V

Rated Current : 8A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Materials : PA66 and brass

Contact Now

Pitch 3.81mm PCB Pluggable Terminal Block Connectors 300V 8A 2P-22P with Header

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:

Pitch 3.81mm pin header PCB Pluggable Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

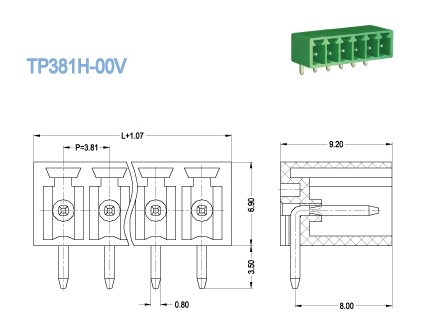

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

1.2

Pin Dimension mm

0.8 x 0.8




Pitch 3.81mm pin header PCB Pluggable Terminal Block


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
