600V 60A Perforation Electrical Terminal Blocks , 12.7mm Feed Through Terminal Block

Name: 600V 60A Perforation Electrical Terminal Blocks 127mm Feed Through Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD60-00

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block

Pitch : 12.7mm

Number Of Contacts : Any Poles Available

Wire Range : 8-26

Rated Voltage : 600V

Rated Current : 60A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

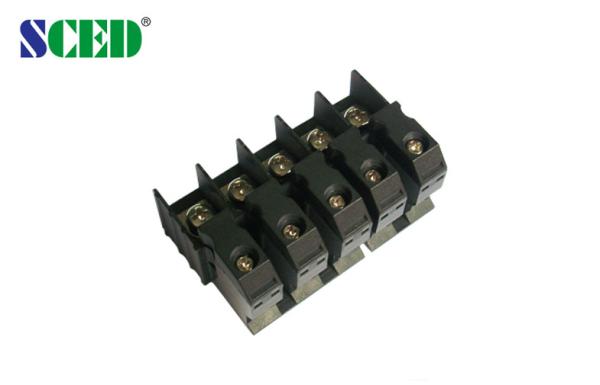

600V 60A Perforation Electrical Terminal Blocks, 12.7mm Feed Through Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

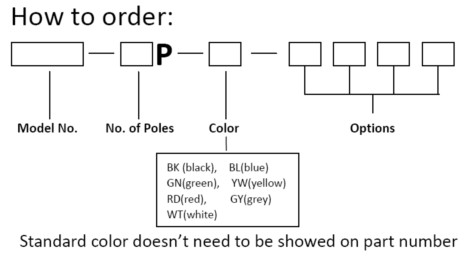

How to order:

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

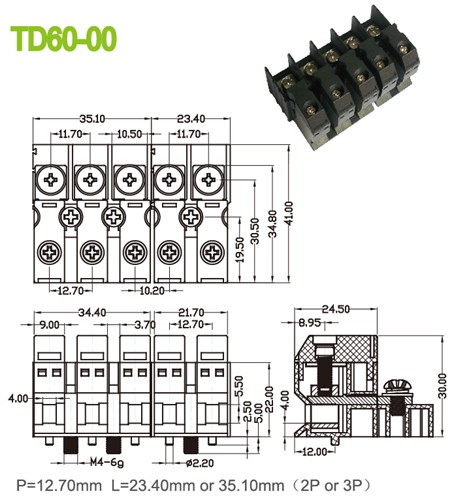

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 60	600 / 60
Wire Range AWG	8-26	8-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 60	1000 / 60	1000 / 60
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Conduction Board / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	9-10
Screw / Torque / lbf.in	M4 / 10.6-13

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Tag:

Feed through terminal blocks, Feed through terminal connectors, through wall terminal block, Electrical terminal Blocks
