2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

Name: 2 9 Pin Pcb Screw Terminal Block 1500mm 115A High Current Terminal Connector
Brand: SCED
Price: 0.5 USD

2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector Manufactures

Brand Name : SCED

Model Number : TJ1500-00

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 300PCS

Price : USD 0.5-0.6 / Pole

Payment Terms : T/T

Supply Ability : 1.2KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : 2-9 Poles

Pitch : 15.00mm

Rated Current : 115A

Rated Voltage : 600V

Wire Range : 2-20 AWG

Material housing : PA66

Contact Now

Pcb Screw Terminal Block 15.00mm 115A Hign Current Terminal Connector 2 - 9 pin

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you

want.

Tag:
PCB terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer

How to order:
2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector

Applications:

PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 115
Wire Range AWG	2-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	1000 / 125	1000 / 125	1000 / 125
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	35
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel /Zinc Plated
Terminal / Plating	Copper / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ2.0
Stripping Length mm	18
Screw / Torque / Ibf.in	M5 / 18-22

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

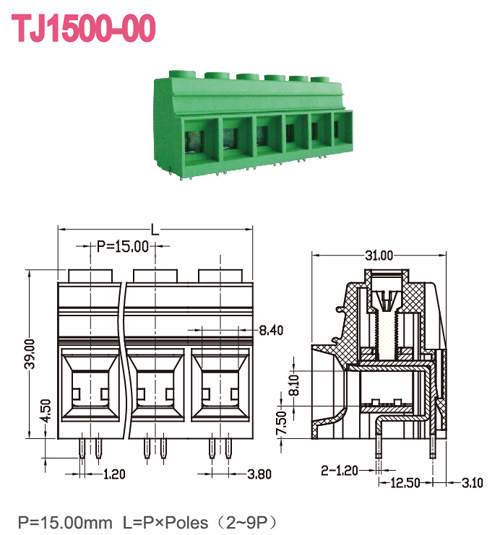

Drawing Photo

2 - 9 Pin Pcb Screw Terminal Block 15.00mm 115A High Current Terminal Connector
