TD Series Through Panel Terminal Block

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD180-01-C

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Terminal Block Connector,Terminal Block Connectors, PCB Connectors

Pitch : 21.0mm

Number Of Contacts : Any Poles Available

Wire Range : 20-1/0

Rated Voltage : 600V

Rated Current : 180A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Materials : PBT, COPPER, STEEL

Contact Now

Detailed product Description:

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm, 600V 180A
Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:


TD Series Through Panel Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

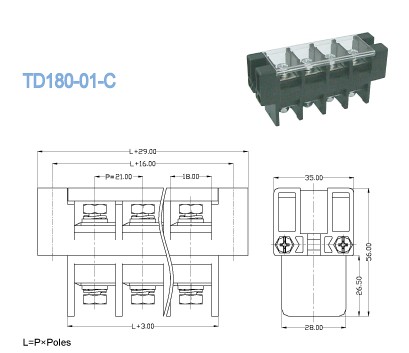

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 180

300 / 180

300 / 10

Wire Range AWG

20-1/0

20-1/0

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 180

800 / 180

1000 / 180

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

8

Material

Insulation Material / Inflammability Class

PBT/ UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

14-18

Screw / Torque / lbf.in

M6 / 20-22


TD Series Through Panel Terminal Block


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
