300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P

Name: 300V 8A Female Pluggable Terminal Block PCB Terminal Blocks Pitch 350mm 2P 22P
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381P-20

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors

Pitch : 3.50mm

Number Of Contacts : 2P-22P

Wire Range : 16-30

Rated Voltage : 300V

Rated Current : 8A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

300V 8A Female Pluggable Terminal Block, PCB Terminal Blocks Pitch 3.50mm 2P - 22P

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:

300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P

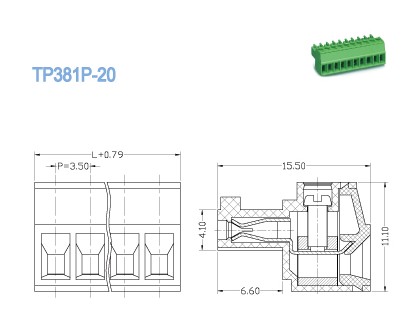

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 8
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Phosphor Bronze / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in	M2 / 2-2.2

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
